yjm Naval Brass Sleeve Bearings

Short Description:

yjm Naval Brass Sleeve Bearings adapt equally well to strut and stern tube mounts, and often used effectively as rudder-stock and pintle bushings. Bearing diameters are precision fitted to designated shaft size with the correct clearance for efficient water lubrication. External brass shells are machined and polished to provide easy fitting.

Send email to us Download as PDF

Product Detail

Product Tags

Parameter

Type of Bearing	Cutlass
Dimension	Standard inch and metric
Color	Black
Feature	Anti-electrolytic
Temperature Range	5 Degree C to 70 Degree C

properties

YJM Cutlass Rubber Bearings offer all the benefits of our brass shelled bearings with added benefit of being lightweight (1/3 the weight of brass bearings) and no galvanic corrosion due to its anti-electrolytic properties.

YJM Cutlass Rubber bearing are made of proprietary composite materials developed by our in house R&D team. The material is resistant to oil, grease and chemicals and match the temperature range of metal bearing materials to function at temperatures from 5°C to 70°C

High temperature resistance and negligible swelling characteristics of YJM rubber bearings enable them to operate at a closer running clearance than other bearing materials.

Introduction

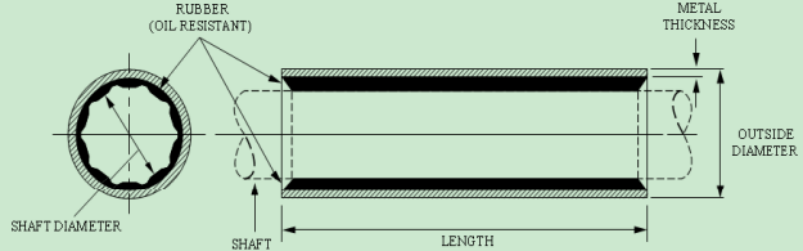

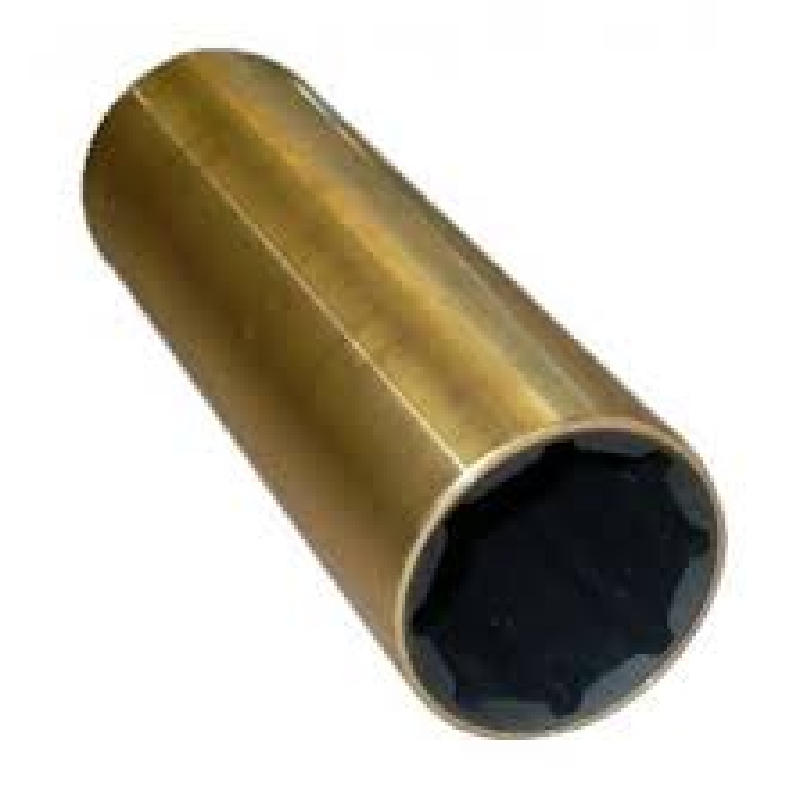

Bronze Sleeve Cutless Bearing 1.000" x 1.250" BACK

External brass shells are machined and polished to provide easy fitting. Specially formulated oil and chemical resistant nitrile rubber is securely bonded to the shell. Units with thin shells are available for the struts of small craft. YJM Cutless Bearings are usually installed by light press fitting and locked in place with cone pointed set screws.

Shaft Diameter: 1"

Outside Diameter: 1 1/4"

Length" 4"

Wall Thickness: 3/64"

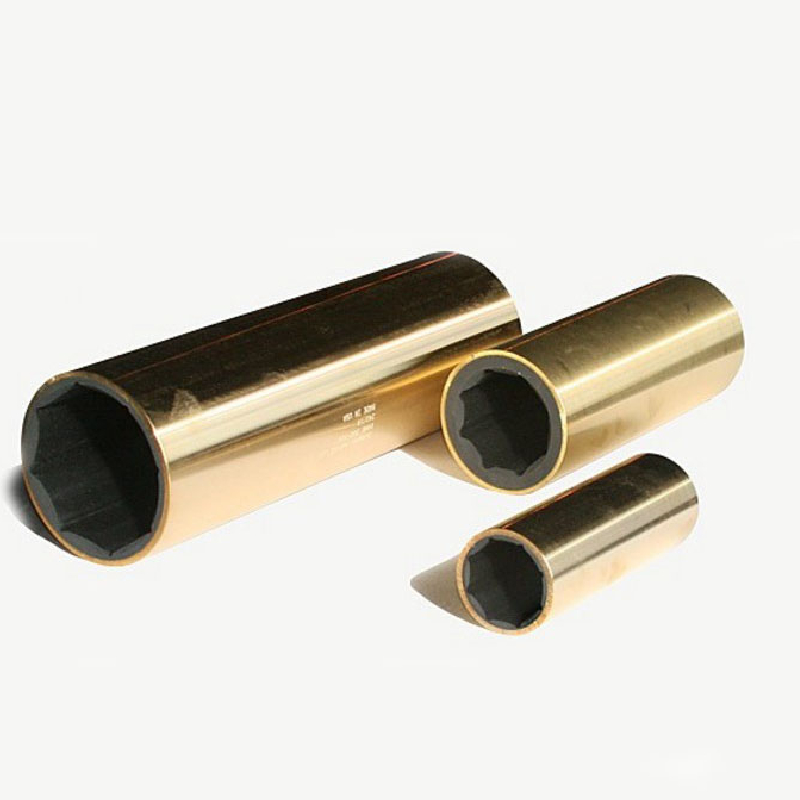

Product appearance

Diameters are precision fitted to the shaft size with correct clearance for efficient water lubrication.

Thin shelled units are available for struts of small craft.

Over 100 different sizes in stock

Available in inch and metricsizes

Custom sizes available upon request

For shaft sizes: 3/4" to 6-1/2" (19.05mm - 165.10mm)

High-quality brass outer shell super-bonded to a fluted rubber
