In every internal combustion engine, effective sealing is crucial for ensuring performance, reliability, and longevity. Among the most critical sealing components are the front and rear crankshaft seals, which prevent oil leaks and protect internal components from external contaminants. These seals, along with related parts such as the front crank, front crank oil seal, front crank shaft, front crankcase seal, front engine oil seal, front main engine seal, and front main oil seal, all work together to keep the engine clean, lubricated, and running smoothly.

Understanding the Front Crankshaft Area and Its Seals

The front crankshaft area is located at the engine's timing end, where the crankshaft connects to components like the timing gear, serpentine belt, and harmonic balancer. It plays a vital role in engine timing and accessory drive.

Front Crank and Front Crank Shaft

The front crank or front crank shaft refers to the forward portion of the engine's crankshaft, which extends through the front of the engine block. This area is a major exit point where rotational motion is transferred to the vehicle's timing and accessory systems. Because it protrudes from the engine, it must be sealed carefully to prevent oil leaks.

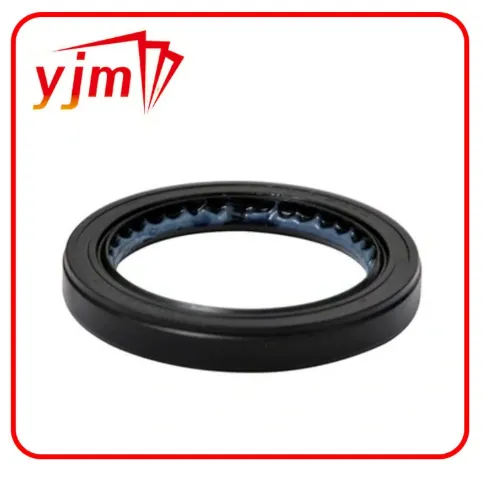

Front Crank Oil Seal and Front Engine Oil Seal

The front crank oil seal—sometimes called the front engine oil seal—is designed to create a tight seal around the crankshaft where it exits the engine. This seal prevents engine oil from leaking out while allowing the crankshaft to rotate at high speeds. It is often made from high-temperature rubber or fluoropolymer materials to endure the demanding environment.

A damaged or worn-out front crank oil seal can result in visible oil leaks, engine contamination, low oil levels, and even engine overheating due to inadequate lubrication.

Front Crankcase Seal

The front crankcase seal provides an additional sealing layer between the engine block (or crankcase) and the front cover. It ensures no oil escapes from the junction between engine components, particularly in high-pressure areas. In many engines, this seal works alongside the front crank oil seal to form a robust barrier.

Front Main Seals: Precision Sealing at a Critical Interface

The front main engine seal and front main oil seal are terms often used interchangeably with the front crank seal. However, they specifically refer to the sealing element at the front main journal of the crankshaft—the point where it meets the engine block and main bearing.

Front Main Engine Seal

The front main engine seal is responsible for sealing the front end of the crankshaft at the main bearing location. It plays a dual role: keeping oil in and dirt out, all while accommodating high-speed rotational movement and slight pressure differentials within the engine.

Proper installation of the front main engine seal is critical. If it's installed at an incorrect angle or with insufficient lubrication, it can wear out prematurely, leading to oil leaks and potential engine failure.

Front Main Oil Seal

Like the front main engine seal, the front main oil seal handles the oil tightness at the crankshaft’s front bearing area. If this seal becomes worn or hardens with age and heat, it can crack or shrink, allowing oil to leak around the crankshaft. Even a small leak can significantly reduce engine efficiency over time and create engine bay messes that can affect other components.

Routine inspection and replacement during timing belt or crankshaft pulley service are good preventive maintenance practices.

Rear vs. Front Crankshaft Seals: Working Together for Total Engine Protection

While this article focuses on the front section, it is important to understand that the rear crankshaft seal works in tandem with the front seal to provide complete crankshaft sealing. These two seals are located at opposite ends of the crankshaft and perform the same core function—keeping engine oil inside and contaminants out.

Front and Rear Crankshaft Seals: Team Effort

The front and rear crankshaft seals serve as the crankshaft’s first and last lines of defense. While the front seal protects the timing and accessory drive components, the rear crankshaft seal is positioned between the crankshaft and the transmission. It ensures oil does not leak into the clutch or torque converter housing, where it could cause slipping or failure.

These seals must be precisely engineered and properly maintained. Poor-quality seals or improper installation can cause premature leaks. For high-performance or long-lasting engines, premium materials such as PTFE (Teflon) and Viton are often used to withstand higher temperatures, pressure, and friction.

Crankshaft sealing is an often overlooked but vital aspect of engine design and maintenance. The front crankshaft seals, including components such as the front crank, front crank oil seal, front crank shaft, front crankcase seal, front engine oil seal, front main engine seal, and front main oil seal, are essential for preventing leaks, maintaining oil pressure, and ensuring engine cleanliness and longevity. Alongside the rear crankshaft seal, they form a complete sealing system that allows the crankshaft to perform its function efficiently and safely.

Proper maintenance, regular inspection, and timely replacement of these seals can help prevent engine oil loss, reduce repair costs, and extend the life of your engine. Whether you’re a mechanic, car enthusiast, or everyday driver, understanding the role of these components can help you better care for your vehicle’s most essential system—the engine.
