Effective Solutions for Shaft Oil Seal Installation and Maintenance Techniques

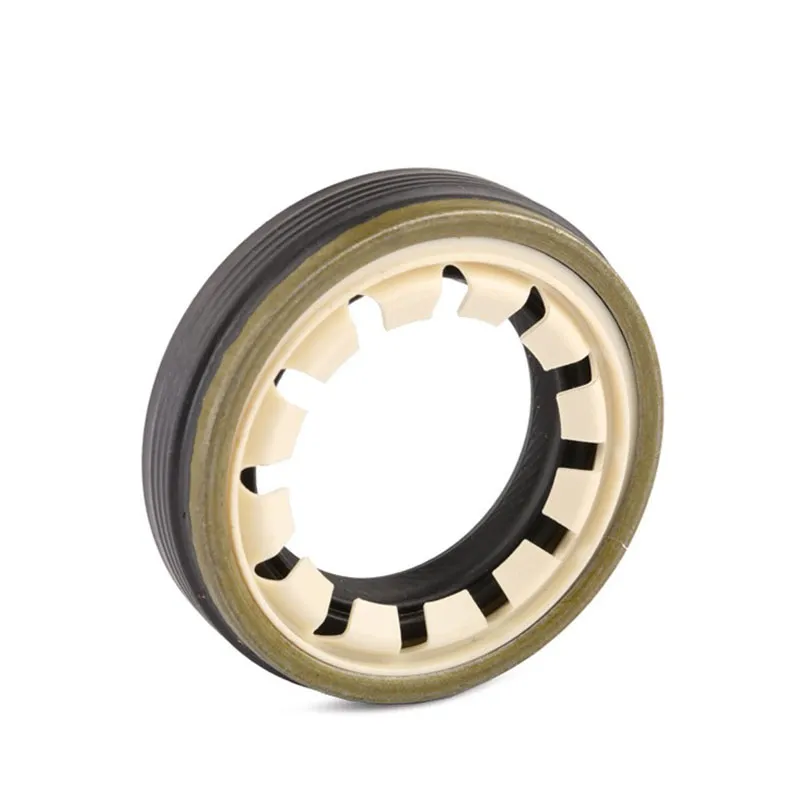

Understanding Shaft Oil Seals Their Importance and Functionality

Shaft oil seals play a crucial role in the functionality of various machinery and automotive systems. These vital components prevent the leakage of lubricants while keeping contaminants out, ensuring optimal performance and longevity of equipment. In this article, we will delve into the significance, working mechanisms, types, and maintenance tips for shaft oil seals.

The Importance of Shaft Oil Seals

Shaft oil seals, also known as rotary shaft seals or lip seals, are primarily designed to seal the gaps between two moving parts, including shafts and housings. They are essential in various applications such as automobiles, industrial machinery, and HVAC systems. Without effective sealing solutions, lubrication can escape, leading to increased friction, overheating, and ultimately the failure of components.

A proper sealing mechanism reinforces the integrity of machinery. In automotive applications, for instance, oil seals prevent engine oil from leaking out while blocking dirt and debris from entering the engine, thereby enhancing performance and extending the lifespan of the vehicle. Similarly, in industrial applications, preventing lubricant loss not only saves costs but also minimizes the environmental impact resulting from oil spills.

How Shaft Oil Seals Work

Shaft oil seals function through their unique design. Made from materials such as rubber, polyurethane, or metal, they comprise a sealing lip that makes direct contact with the rotating shaft. The primary component of most oil seals includes

1. Sealing Lip This is the part that maintains contact with the shaft. Its flexibility allows it to adapt to minor deviations or wear in the shaft’s surface. 2. Body The body of the seal is typically constructed from durable materials to withstand external forces and pressures. 3. Spring Many oil seals feature a garter spring that provides additional pressure against the sealing lip, ensuring a snug fit around the shaft.

When the shaft rotates, the sealing lip forms a barrier, allowing the oil to remain contained within the designated area while preventing contaminants from entering the system. The efficiency of this mechanism is critical; if the seal is compromised, it can result in leaks and potential damage to the machinery.

Types of Shaft Oil Seals

1. Single Lip Seals These are the most common seals used in machinery, providing effective sealing for one direction of fluid.

2. Double Lip Seals These seals feature two lips and provide additional protection against contamination, making them suitable for harsh environments.

3. V-Seals A type of shaft seal that utilizes a flexible lip to create a barrier on rotating shafts, effective for keeping dirt and particles out.

4. Custom Seals For specialized applications, custom-designed seals can be manufactured to fit unique machinery requirements.

Choosing the right type of oil seal is vital for ensuring optimal performance in the intended application.

Maintenance Tips for Shaft Oil Seals

To maximize the longevity and effectiveness of shaft oil seals, regular maintenance is necessary. Here are some practical tips

1. Inspect Regularly Routine checks for signs of wear, such as cracking or deformity in the sealing lip, can preemptively address potential leaks.

2. Ensure Proper Installation Incorrect installation can lead to premature failure. Follow manufacturer specifications and use the proper tools when installing seals.

3. Keep Shafts Smooth Any imperfections on the shaft surface can damage the sealing lip. Maintaining a smooth shaft surface prevents unnecessary wear on the seal.

4. Monitor Fluid Levels Ensure that fluid levels are consistent. Low levels can lead to overheating and damage to the seal.

5. Use Quality Seals Opt for high-quality seals that can withstand the operational demands of your machinery.

Conclusion

Shaft oil seals are integral components that significantly affect the performance and longevity of various mechanical systems. By acting as barriers against leaks and contaminants, they ensure that machinery operates efficiently. Understanding the functioning and maintenance of these seals not only helps in preventing costly repairs but also in sustaining the operational integrity of the equipment. Whether in automotive or industrial settings, prioritizing the health of shaft oil seals is a key step in effective machinery management.
