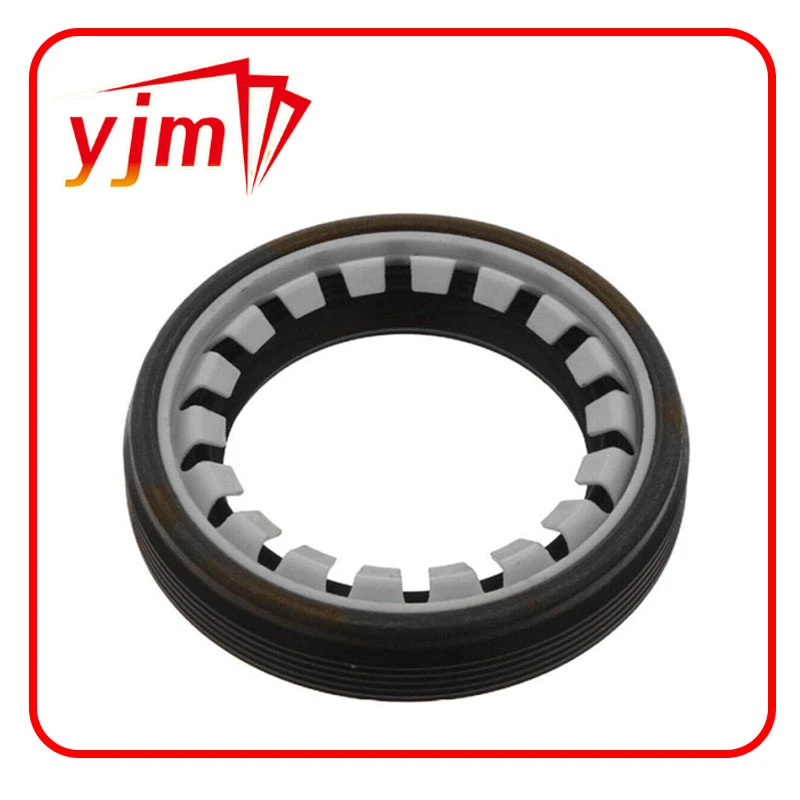

Equivalent Oil Seal Specifications for 30 52 10 Applications and Variants

Understanding the Oil Seal A Deep Dive into the 30x52x10 Dimension

Oil seals, specifically those measuring 30mm in inner diameter, 52mm in outer diameter, and 10mm in width, play a crucial role in various mechanical systems. These seals are commonly used in machinery, automotive applications, and industrial equipment to prevent the leakage of fluids and contamination of lubrication. This article delves into the significance, construction, applications, and maintenance of oil seals, emphasizing the 30x52x10 specification.

What is an Oil Seal?

An oil seal, also known as a lip seal, is a sealing device that consists of a flexible lip that fits against a rotating shaft. This lip creates a barrier that stops the escape of lubricants while preventing dirt, dust, and moisture from entering the mechanical system. The effectiveness of an oil seal is determined by its design, material composition, and dimensional specifications.

Dimensions and Importance of 30x52x10 Oil Seals

The dimensions 30x52x10 refer to the inner diameter, outer diameter, and width of the oil seal, respectively. These measurements are crucial as they determine the compatibility of the seal with specific shafts and housings.

1. Inner Diameter (30mm) The inner diameter indicates the size of the shaft it will seal. Choosing the correct inner diameter ensures a snug fit, preventing oil leaks and maintaining optimal performance. 2. Outer Diameter (52mm) The outer diameter measures how it secures in the housing. An appropriate outer diameter is important for avoiding any play or movement that could lead to premature wear.

3. Width (10mm) The width of the seal affects the area of contact with the shaft and the sealing capacity. A wider seal typically offers better resistance to pressure and can accommodate larger volumes of lubrication.

Oil seals are often made from various materials, such as rubber, polymer, or composite materials.

- Nitrile Rubber (NBR) This is the most common material used for oil seals due to its excellent resistance to oils, fuel, and various chemicals. - Fluoroelastomer (FKM) For high-temperature applications or when dealing with aggressive fluids, FKM offers superior performance.

- Silicone Rubber Silicone seals are ideal for extreme temperature environments, providing flexibility and durability.

The choice of material significantly impacts the seal's longevity and performance, making it essential to choose the right one based on the application environment.

Applications of Oil Seals

The 30x52x10 oil seal is widely used in various applications, such as

- Automotive Found in engines, transmissions, and differentials, these seals help maintain the integrity of the lubricating fluids essential for mechanical operation.

- Industrial Machinery In equipment such as pumps, compressors, and gearboxes, oil seals ensure that lubricants do not escape and that contaminants do not enter.

- Agricultural Equipment Used in tractors and other machinery, they protect vital components from wear and tear due to environmental exposure.

Maintenance and Replacement

Regular inspection and maintenance of oil seals are vital to ensure they perform their function effectively. Signs that an oil seal may need replacement include

- Oil Leakage Visible oil pooling around the equipment is a clear indication of seal failure. - Increased Friction If machinery components are making more noise than usual, this may signal that the lubricant is escaping.

- Contaminated Lubricants If dirt or moisture is detected in the oil, it may imply that the oil seal has lost its sealing capabilities.

Replacing an oil seal is generally straightforward but requires attention to detail. Ensuring that the new seal is properly seated and that the shaft is free of debris will prevent early failures.

Conclusion

In conclusion, the 30x52x10 oil seal is a pivotal component in many mechanical systems. Understanding its functions, applications, and maintenance can significantly affect the performance and longevity of machinery. By selecting the correct materials and ensuring proper installation, users can achieve reliable and efficient mechanical operations, reducing the chances of costly downtime and repairs.
