Understanding the Functionality of Double Lip Shaft Seals in Mechanical Applications

Understanding the Double Lip Shaft Seal A Comprehensive Overview

Seals are crucial components in many mechanical systems, playing a vital role in maintaining performance and longevity. Among the various types of seals, the double lip shaft seal is particularly noteworthy for its design and functionality. This article aims to provide an in-depth look at the double lip shaft seal, including its construction, benefits, applications, and maintenance.

What is a Double Lip Shaft Seal?

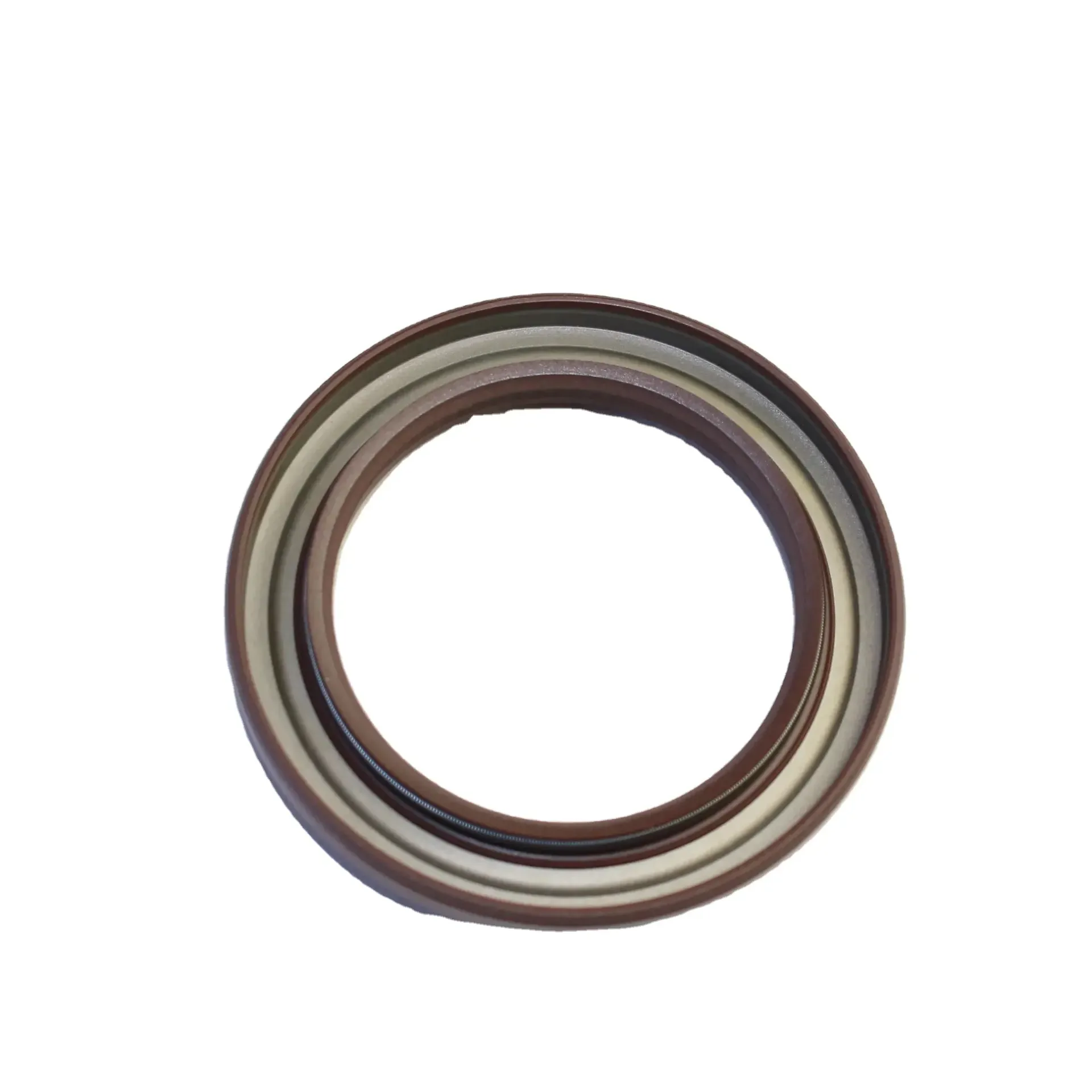

A double lip shaft seal, also known as a dual lip seal, features two sealing lips that work in tandem to prevent the leakage of fluids along a rotating shaft. Typically constructed from durable materials such as rubber or elastomers, these seals are designed to accommodate various types of liquids and gases. The configuration of two lips allows for enhanced sealing performance, making them ideal for applications where contamination and leakage are of concern.

Construction and Design

The design of a double lip shaft seal consists of several key components

1. Outer casing The outer part of the seal provides a secure fit in the housing and is often designed to withstand external conditions, such as dust and moisture.

2. Inner lip The first lip makes contact with the rotating shaft. This lip is usually spring-loaded, allowing it to maintain pressure against the shaft, thus preventing fluid leakage.

3. Outer lip The second lip serves as an additional barrier, providing an extra layer of protection against environmental contaminants. This dual barrier system significantly improves the seal's effectiveness.

4. Spring mechanism Many double lip seals include a spring element that helps keep the inner lip pressed against the shaft, compensating for wear and maintaining sealing pressure over time.

Benefits of Double Lip Shaft Seals

1. Enhanced Protection The primary benefit of a double lip design is the extra layer of protection it provides against fluids and contaminants. This is especially important in harsh operating environments where dust, dirt, or moisture can lead to equipment failure.

2. Reduced Friction The dual lip configuration helps to reduce friction between the seal and the shaft, minimizing wear and tear on both components. This can extend the lifespan of both the seal and the shaft, leading to lower maintenance costs over time.

3. Versatility These seals can be used in a wide range of applications, from automotive engines to industrial machinery and hydraulic systems. Their ability to handle different fluids and operating conditions makes them a versatile choice.

4. Cost-Effective While double lip seals may have a slightly higher initial cost compared to single lip seals, their longevity and effectiveness ultimately lead to cost savings in maintenance and replacement.

Applications

Double lip shaft seals are used in various industries, including

- Automotive They are commonly found in engines, transmission systems, and differential assemblies, where they help prevent oil leaks and maintain lubricant integrity.

- Industrial Machinery In manufacturing equipment, these seals safeguard bearings and shafts from lubricants and external contaminants, greatly enhancing operational efficiency.

- Hydraulics Hydraulic systems benefit from the double lip design for its ability to withstand high pressures and prevent hydraulic fluid leaks.

- Pumps and Compressors Double lip seals are used in various types of pumps and compressors to ensure optimal performance and reliability.

Maintenance and Best Practices

To maximize the performance and lifespan of double lip shaft seals, regular maintenance practices should be implemented

1. Proper Installation Ensure the seal is installed correctly, following manufacturer guidelines to achieve optimal performance.

2. Regular Inspection Periodic checks on seals can help identify wear or damage before they lead to leakage, preventing costly downtime.

3. Environmental Controls Maintaining a clean operating environment can significantly prolong the life of the seal by reducing the amount of contaminants that could compromise its integrity.

4. Monitoring Operating Conditions Keeping an eye on pressure, temperature, and fluid compatibility can help in selecting the right type of double lip seal for specific applications.

In conclusion, double lip shaft seals are integral components that enhance the performance and durability of various mechanical systems. Their unique design offers superior sealing capabilities, making them suitable for diverse applications. By understanding their construction, benefits, and maintenance requirements, users can ensure optimal functionality and longevity of their machinery.
