KFC WASHERS

flat metal gasket
Short Description:

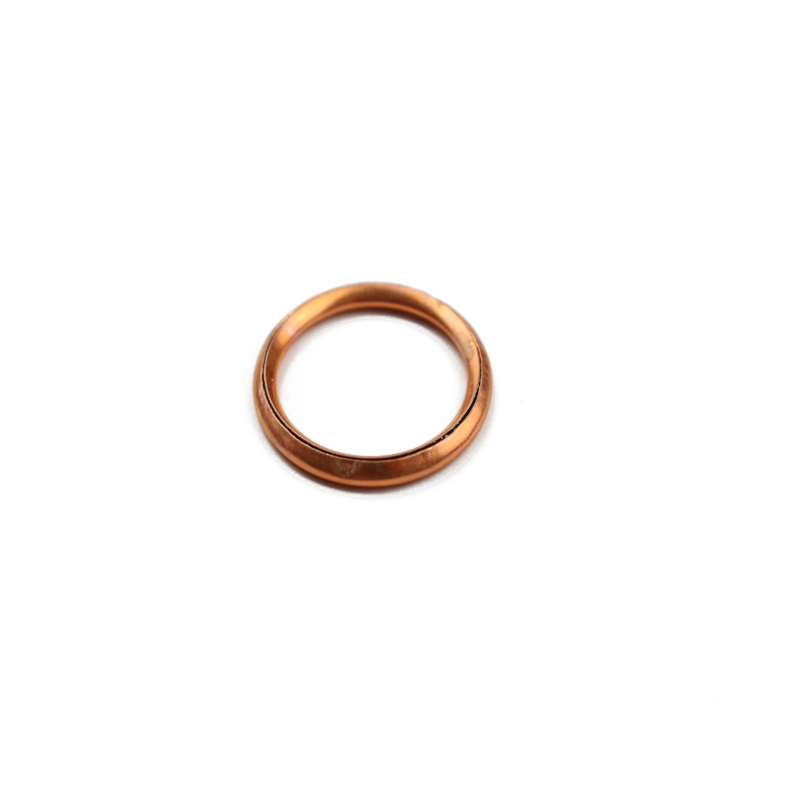

Description: DIN 7603 Sealing ring (Sealing washer according to DIN 7603) Type: KFC - Shape C Material: Copper/Aluminum/Iron + Fiber (CuFA, AlFA, StFA) Colour: Brown-Red Pressure: ≤ 200 bar (20 MPa) Temperature: ≤ 300°C (572°F) Speed: Static


Download as PDF

Product Detail

Product Tags

Read More About flat ring type gasket

Parameters



CODE                            DESCRIPTION                                 REF.     ID   OD   H        MATERIAL

HWKFC6101,5  COPPER CRUSH WASHER KFC - 6x10x1,5                   6   10    1,5       Copper + Fiber

HWKFC8121,5   COPPER CRUSH WASHER KFC - 8x12x1,5                  8   12    1,5       Copper + Fiber

HWKFC8141,5   COPPER CRUSH WASHER KFC - 8x14x1,5                  8   14    1,5       Copper + Fiber

HWKFC10141,5  COPPER CRUSH WASHER KFC - 10x14x1,5    1/8''         10   14   1,5        Copper + Fiber

HWKFC10161,5  COPPER CRUSH WASHER KFC - 10x16x1,5    1/8''         10   16   1,5        Copper + Fiber

HWKFC12162   COPPER CRUSH WASHER KFC - 12x16x2                  12   16   2          Copper + Fiber

HWKFC12182   COPPER CRUSH WASHER KFC - 12x18x2                  12   18   2          Copper + Fiber

HWKFC14182   COPPER CRUSH WASHER KFC - 14x18x2      1/4''         14   18   2          Copper + Fiber

HWKFC14202   COPPER CRUSH WASHER KFC - 14x20x2      1/4''         14   20   2          Copper + Fiber

HWKFC16202   COPPER CRUSH WASHER KFC - 16x20x2                  16   20   2          Copper + Fiber

HWKFC16222   COPPER CRUSH WASHER KFC - 16x22x2                  16   22   2          Copper + Fiber

HWKFC18242   COPPER CRUSH WASHER KFC - 18x24x2                  18   24   2          Copper + Fiber

HWKFC20242   COPPER CRUSH WASHER KFC - 20x24x2                  20   24   2          Copper + Fiber

HWKFC20262   COPPER CRUSH WASHER KFC - 20x26x2                  20   26   2          Copper + Fiber

HWKFC22272   COPPER CRUSH WASHER KFC - 22x27x2                  22   27   2          Copper + Fiber

HWKFC24322,5  COPPER CRUSH WASHER KFC - 24x32x2,5                24   32   2,5        Copper + Fiber

HWKFC26312,5  COPPER CRUSH WASHER KFC - 26x31x2,5                26   31   2,5        Copper + Fiber

HWKFC26322,5  COPPER CRUSH WASHER KFC - 26x32x2,5                26   32   2,5        Copper + Fiber

HWKFC26342,5  COPPER CRUSH WASHER KFC - 26x34x2,5                26   34   2,5        Copper + Fiber

HWKFC28342,5  COPPER CRUSH WASHER KFC - 28x34x2,5                28   34   2,5        Copper + Fiber

HWKFC30362,5  COPPER CRUSH WASHER KFC - 30x36x2,5     7/8''        30   36   2,5        Copper + Fiber

HWKFC32382,5  COPPER CRUSH WASHER KFC - 32x38x2,5                32   38   2,5        Copper + Fiber

HWKFC36422,5  COPPER CRUSH WASHER KFC - 36x42x2,5                36   42   2,5        Copper + Fiber

HWKFC38442,5  COPPER CRUSH WASHER KFC - 38x44x2,5     1 1/8''      38   44   2,5        Copper + Fiber

HWKFC42492,5  COPPER CRUSH WASHER KFC - 42x49x2,5     1 1/4''      42   49   2,5        Copper + Fiber

HWKFC48552,5  COPPER CRUSH WASHER KFC - 48x55x2,5     1 1/2''      48   55   2,5        Copper + Fiber

HWKFC50572,5  COPPER CRUSH WASHER KFC - 50x57x2,5                50   57   2,5        Copper + Fiber

flat metal gasket

flat metal ring gasket

flat ring seal

flat ring type gasket

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.


Write your message here and send it to us

Products categories

  • Brass cutlass marine bearing

    Brass cutlass marine bearing

  • Genuine OEM Engine Oil Filter Housing Cover O-Ring For VW/Audi 06E115446

    Genuine OEM Engine Oil Filter Housing Cover O-Ring For VW/Audi 06E115446

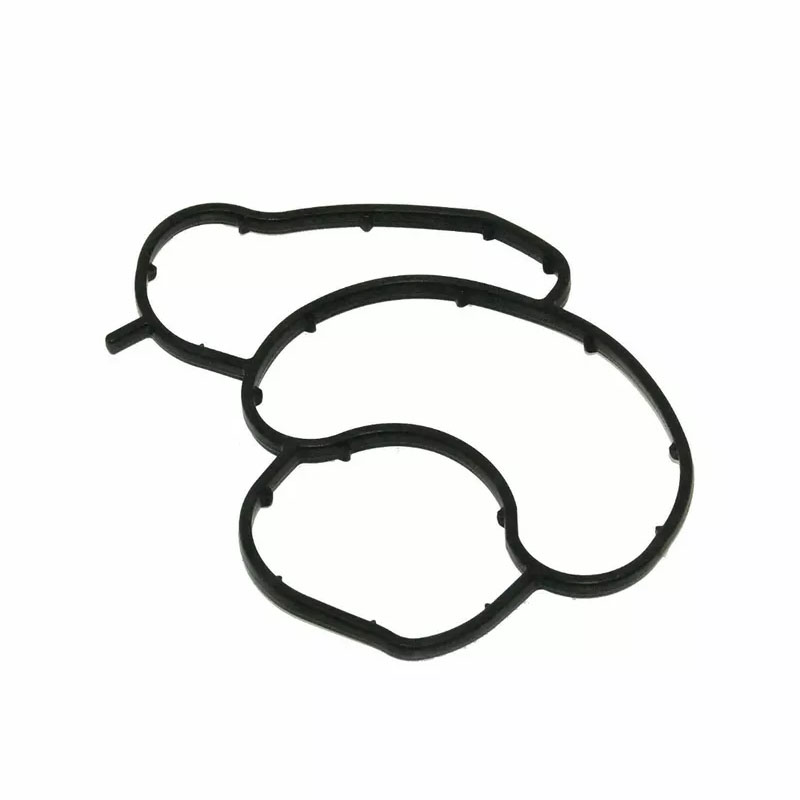

  • Oil Filter Stand Gasket,Oil filter cover seal
